BMW Subframe Bushing & Differential Service in Brooklyn

You hear it turning off Gravesend Neck Road. A dull clunk from behind the rear seat when you lift off the gas, then again when you get back on it. Same clunk, every time. On an E90, E92, or F30, that noise usually traces to the rear differential mount bushing or the subframe bushings, and Brooklyn pavement is what wore them out.

Nobody escapes the potholes. AAA has estimated that pothole damage costs U.S. drivers about $3 billion a year in vehicle repairs, and rear suspension mounts on a 3 Series absorb that abuse first. Rubber tears, the differential shifts under load, and the driveline slams instead of flexing.

A torn differential mount bushing makes that rear-end clunk

The rear differential hangs on rubber mounts, and when the rubber splits the whole unit shifts under torque. On an E90 the front mount bushing is a press-fit part in the subframe, and once it tears the driveline moves a quarter inch every time you change throttle. That movement is your clunk.

Drive the Belt Parkway expansion joints and you’ll hear it doubled, because the bushings locating the subframe are usually just as tired as the one holding the diff. Both wear together. Replacing one and leaving the other is how a car comes back in four months with the same complaint. Do both at once.

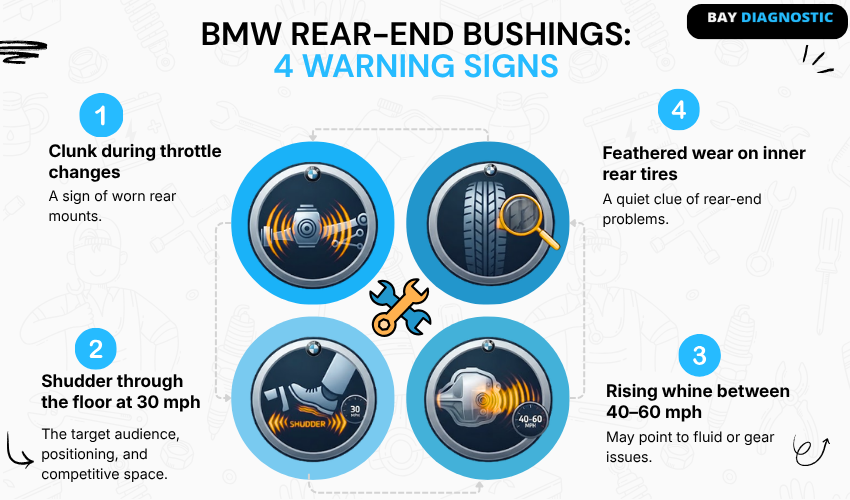

Four signs tell you the rear end needs bushings

Listen, then look. A clunk on throttle transitions, a shudder through the floor at 30 mph, a rising whine between 40 and 60 mph, and feathered inside edges on the rear tires make the pattern. Whine means fluid or gears. Clunk means mounts.

Sorting the two before parts get ordered separates a $250 fluid service from a $2,000 rebuild, and a lift plus a pry bar settles it in fifteen minutes. Rear tire wear is the quiet clue most owners miss until the tires are already scrap. Look at the inner edges.

Brooklyn roads and lifetime fluid do the damage together

Two forces wear these parts out. Rubber bushings age from heat and load, and every sharp-edged pothole on Ocean Parkway sends a shock through the subframe that rubber has to absorb. Brooklyn supplies the shocks.

The second force is marketing. BMW filled the final drive with oil and called it lifetime, so a 100,000-mile car often still carries its factory fill. That oil sheared down 60,000 miles ago. Worn gear oil raises operating temperature, cooks the pinion seal, and adds load to mounts that were already cracked. Change that fluid.

Putting it off turns bushings into a differential rebuild

Loose mounts destroy gears. Once the diff can move, driveshaft and half-shaft angles change under every acceleration, and the shock loads land on the ring and pinion instead of the rubber meant to soak them up. Bushings are cheap by comparison.

A pair of subframe bushings and a diff mount, installed, runs $900 to $1,600 here, while a rebuilt final drive for an E92 335i lands between $2,200 and $3,500 with labor. On an E46, waiting long enough cracks the floor pan itself, and then you’re paying a welder. Don’t get there.

How our Brooklyn shop repairs subframe and differential wear

Every rear-end complaint starts on the lift. Our techs load the subframe with a pry bar, watch the diff for movement, inspect all four subframe bushings and both differential mounts, then check the final drive oil for glitter before anything gets quoted. Then you see photos.

Bushings go in with proper press tooling instead of heat and a hammer, the subframe comes down when access demands it, and the final drive gets fresh gear oil to spec. Forty years on Gravesend Neck Road means we’ve done this on more E46s, E90s, and F30s than we can count, and the work carries a 36-month, 36,000-mile warranty. It holds up.

Frequently Asked Questions

Q: What causes a clunking noise from the rear of a BMW?

A: Most often a torn rear differential mount bushing. The diff shifts when you change throttle and the driveline takes up the slack with a thud. Worn subframe bushings, a bad flex disc, or loose sway bar links make similar noises, so a shop should load the subframe on a lift before selling parts. Pry bar, not guesswork.

Q: How often should BMW rear differential fluid be changed?

A: Every 30,000 to 50,000 miles, despite the lifetime fill label. Final drive oil shears down and loses its additive package well before 100,000 miles. On a Brooklyn car that sees constant potholes and heat, 30,000 miles is the number we recommend.

Q: Is it safe to drive with worn rear subframe bushings?

A: For a short while, yes, though handling and tire wear suffer immediately. Loose mounts change rear alignment under load and put shock into the ring and pinion. Waiting turns a bushing job into a differential rebuild, and on an E46 it can crack the trunk floor.

Bring the clunk in and get a straight answer

Rear-end noises get diagnosed on a lift, not in a parking lot. Drop your BMW at our Gravesend Neck Road shop and you’ll get photos of the torn bushing, the fluid condition, and one quote covering what the car actually needs. No guessing.
